First class marathon
®
Firing systems implemented worldwide…
Pure Energy.
Reliable.
Efficient.
Clean.
Update
More than 400 reg-
istered
webCOBRA
®
users profit from ten
years of experience of
dreizler
®
in the range
of automated burner dimensioning and proposal preparation.

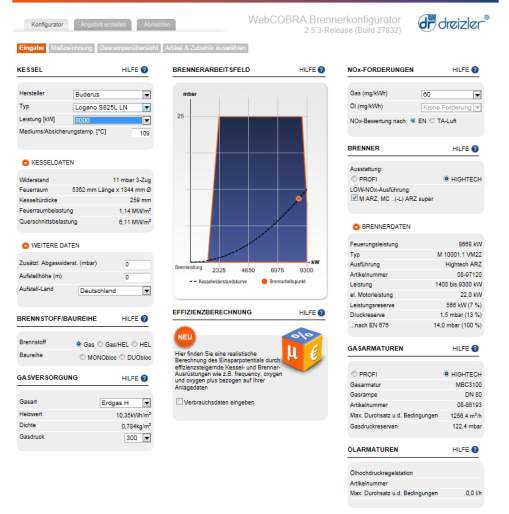

webCOBRA
®
comprise the entire spectrum of the dreizler
®
CE-
type tested burner series
marathon
®
: from a gas burner with
120 kW up to a multifuel burner with 30 MW with mixed fuel
firing for power plants and process firings.
Take advantage as a user of the unique burner configurator in
the web: 24 hours a day, 7 days a week you can design and con-
figure by yourself your suitable
marathon
®
burner.
The
webCOBRA
®
offers transmitted by E-Mail, include detailed
and binding price specifications and all technical characteristics
as for example dimension, weight, emissions and control ratios.
New in the update since 01.09.2012:
The burner sizes
marathon
®
M 1001, M 1501 and M 5001.1 are
integrated with the enhanced capacity ranges.
Example of the installation Papermill UPM Schongau
Powerhouses with sprinter quality
01.09.2012 -
Burner configurator webCOBRA
®
In the past month the steam generating
installation in the papermill UPM Schon-
gau was successfully transferred to the
customer.
4 x gas burners
marathon
®
M 10003.5
ARZ V90
oxygen plus
were installed at
2 x double flame tube boilers ZFR of the
Bosch Industriekessel GmbH.
The special feature of this installation are
besides the total steam output of 100 to
steam/h in combination with the thigh
control ratio of the burners and especially
low NO
X
emissions, particularly the quick
start characteristics of the complete in-
stallation.
In less than 120 sec. from the start signal,
both burners are ready with 100 % com-
bustion capacity. This is possible through
special adjustments of the combustion
manager ETAMATIC OEM by Lamtec,
using the quick start options according
to EN 676 without prepurge.
All components of the installation, as for
example supply air and flue gas dampers,
load control and steam control valves, are
dimensioned to highest reaction rates.
Due to these very quick reaction times it
is now possible at a failure to produce the
steam generation within no time by these
two shell boilers. By this a safe operation
of the papermill is always guaranteed for
UPM.
We thank the team of UPM in Schon-
gau, the project managers and engineers
of the Bosch Industriekessel GmbH
and the plant constructor INTEGRAL-
MONTAGE Anlagen- und Rohrtechnik
GmbH from Austria, who enabled this re-
markable top performance together with
dreizler
®
and dreizler
®
service.
Do you want to register?
Send an E-Mail to
E-Mail:
cobra@dreizler.com
and after a short time you will get your personal access.
Boiler:
Burner:
Capacity range:
Technical data:
2 x double flame tube
boilers ZFR 50000x16
4 x
marathon
®
M 10003.5 ARZ V90
oxygen plus
2.750 – 21.000 kW
NO
x
< 80 mg/kWh
